CNC Busbar chamfering Machine
High-Precision Edge and Radius Machining for Copper & Aluminum Busbars
Why Choose CNC Busbar Chamfering Machine？
The LJMN-200 CNC Busbar Chamfering Machine is designed for automatic chamfering, radius milling and end-profile machining of copper and aluminum busbars. With 5-axis CNC control, high-speed spindle machining and automatic tool changing, it delivers precise and consistent edge finishing for electrical manufacturing.
- 6000 rpm Max. Spindle Speed
- 5-Axis CNC Control
- ±0.05 mm Z-Axis Positioning Accuracy
- 30–200 mm Busbar Width

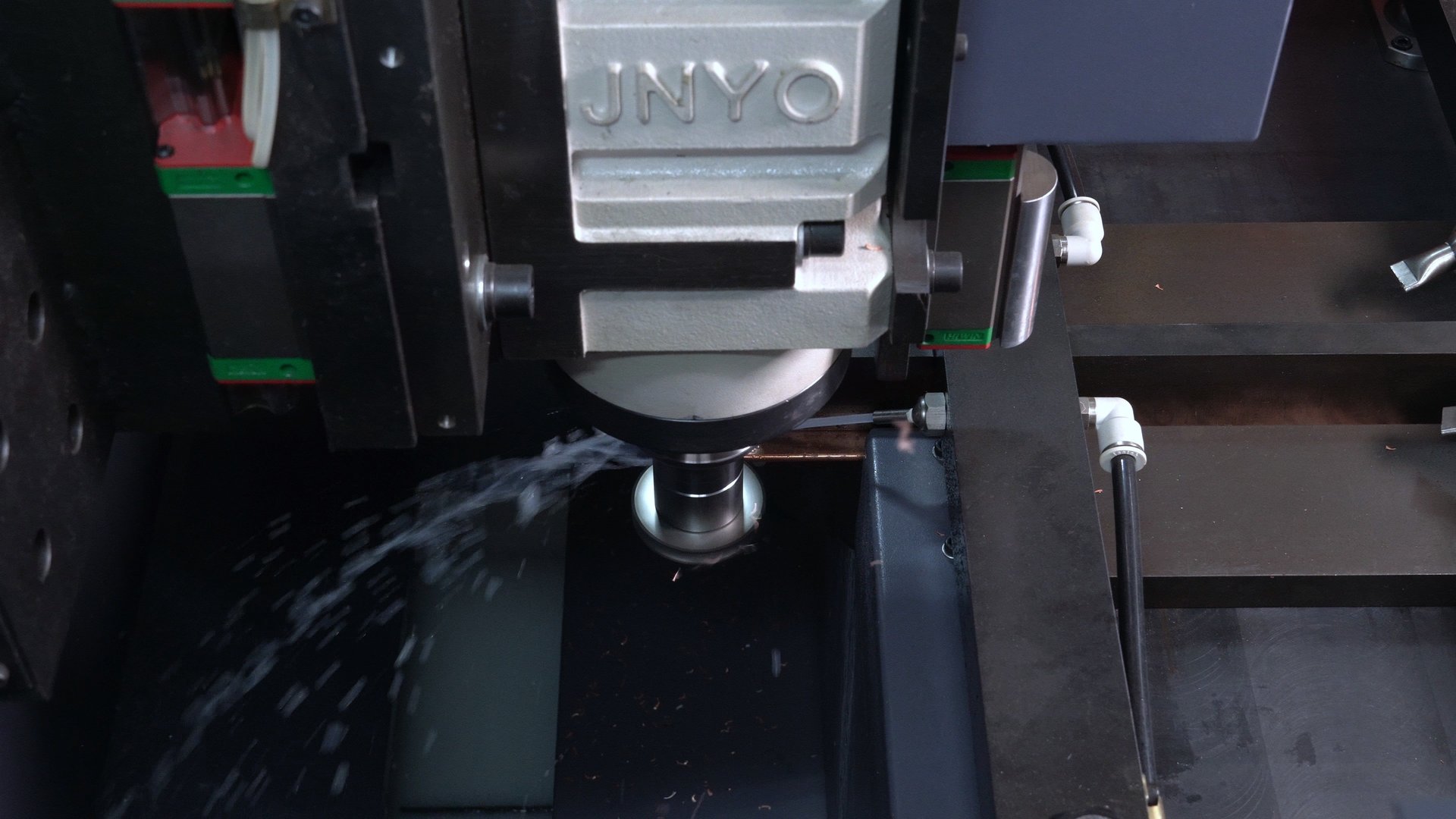

See the Chamfering Machine in Action
The LJMN-200 automates busbar end finishing and profile machining, helping manufacturers achieve consistent chamfers and radiused edges while reducing dependence on manual grinding and finishing. Its rigid gantry structure, CNC servo control and high-speed milling spindle provide a stable platform for repeatable production.
Need to test your own busbar drawing? Send us your drawing and specifications for a processing evaluation.
Why Choose CNC busbar Punching & Shearing Machine
Machine configurations can be customized according to busbar dimensions, processing requirements and production capacity. Contact our engineers for detailed specifications and configuration recommendations.
Less Manual Handling
Automatic feeding, positioning, punching and shearing reduce repetitive operator tasks and dependence on manual measurement.
Consistent Processing Accuracy
CNC-controlled positioning helps maintain consistent hole locations, cutting dimensions and processing quality across different production batches.
5-Axis CNC Control

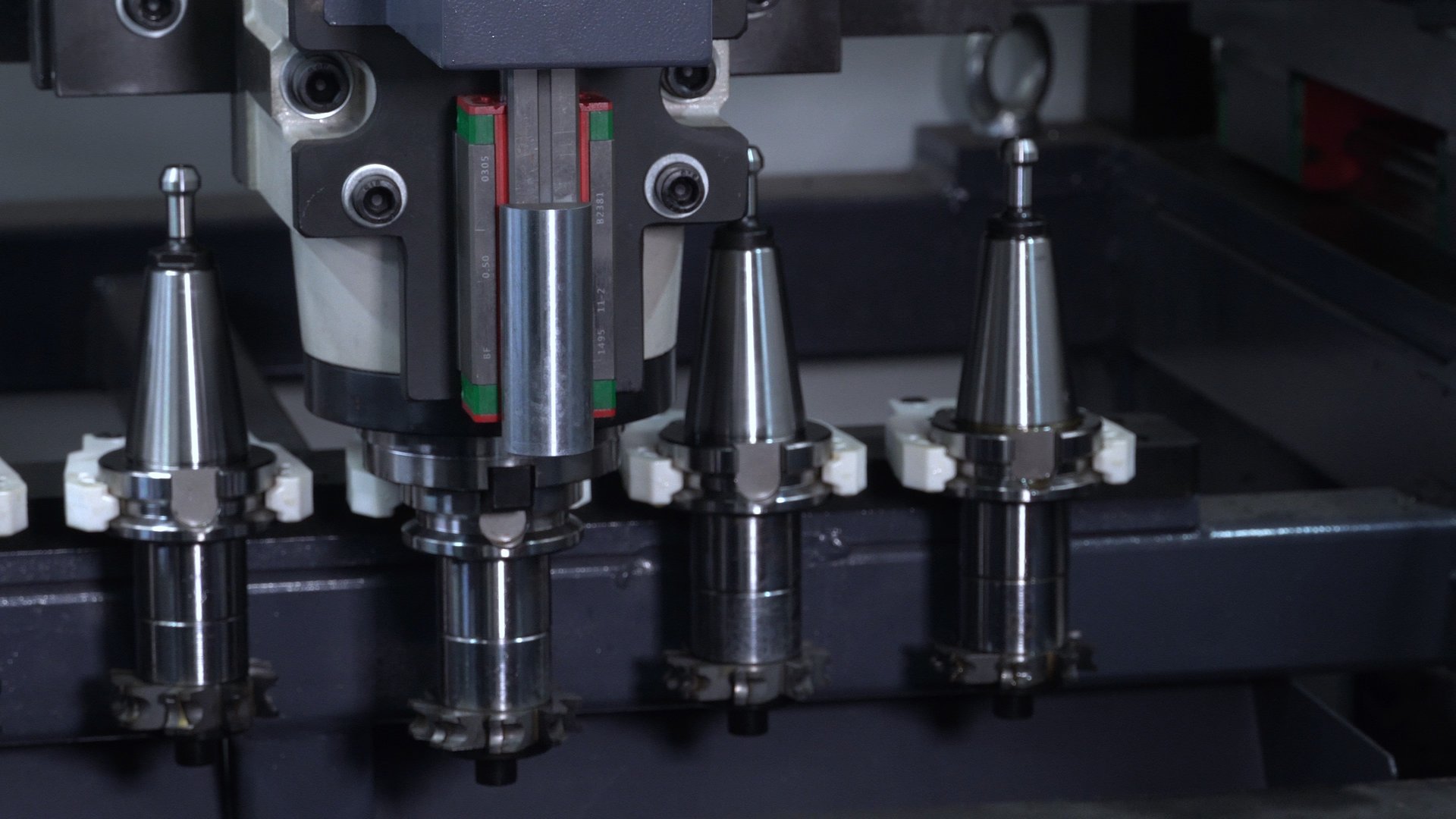

The CNC system coordinates spindle and servo movements for automatic busbar positioning and machining, improving repeatability and simplifying operation.

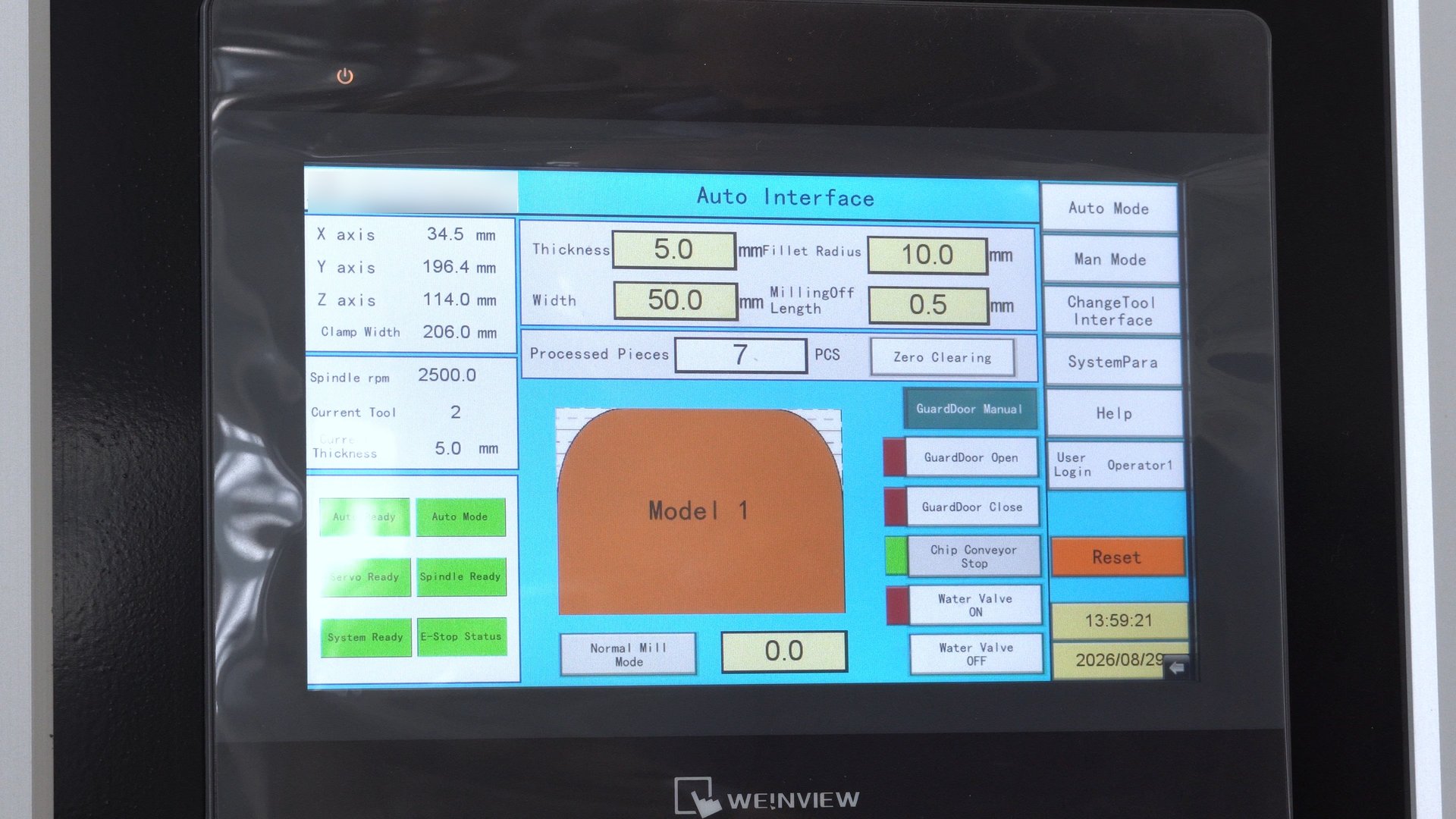

Beckhoff CNC Control System
The Beckhoff CNC control system provides stable, precise motion control and reliable coordination of feeding, positioning, punching and shearing operations.
Technical Specifications
Explore the key technical specifications of our CNC Busbar Punching & Shearing Machine, including processing capacity, accuracy, speed, control system, and machine configuration.
| 1 | Maximum spindle speed | r/min | 6000 | 2 | Main motor power | KW | 3.7 |
| 3 | Maximum X-axis travel | mm | 525 | 4 | Maximum speed of X axis | m/min | 15 |
| 5 | X-axis positioning accuracy | mm | ±0.08 | 6 | Maximum travel of X axis | mm | 500 |
| 7 | Maximum Y-axis speed | m/min | 15 | 8 | Positioning accuracy of Y axis | mm | ±0.08 |
| 9 | Maximum Z-axis travel | mm | 130 | 10 | Positioning accuracy of Z axis | mm | ±0.05 |
| 11 | Workpiece length that can be processed | mm | 150-6000 | 12 | Machinable workpiece width | mm | 30-200 |
| 13 | Machinable workpiece thickness | mm | 4-16 | 14 | Dimensions | mm | 2260×1580×2100 |
| Control method | |||||||
| 1 | Number of CNC axes | PC | 5 | 2 | X-axis servo motor power | KW | 2 |
| 3 | Y-axis servo motor power | KW | 2 | 4 | Z-axis servo motor power | KW | 1 |
| 5 | Air source pressure | MPa | 0.6-0.8 | 6 | Hydraulic pump motor power | KW | 2 |
| 7 | Total power | KW | 12 | ||||
| NO | Name | Brands | QTS |
| 1 | Central Processing Unit (PLC) | Beckhoff, Germany | 1 |
| 2 | Servo Motor | Rexroth, Germany | 3 |
| 3 | Servo Drive | Rexroth, Germany | 3 |
| 4 | Ball Screw | TBI, Taiwan | 3 |
| 5 | Linear Rolling Guide | Hiwin, Taiwan | 3 |
| 6 | Pneumatic Parts | HSBC | 1 |
| 7 | Hydraulic Parts | Shanghai Fengyi | 1 |
| 8 | Spindle | Jingyao | 1 |
*Machine configurations can be customized according to busbar dimensions, processing requirements and production capacity. Contact our engineers for detailed specifications and configuration recommendations.
Role in Busbar Production
Complete the Busbar Processing Workflow
The CNC Busbar Chamfering Machine complements punching, shearing and bending equipment by adding precision edge and profile finishing to the busbar manufacturing process.
Drawing / Production Data

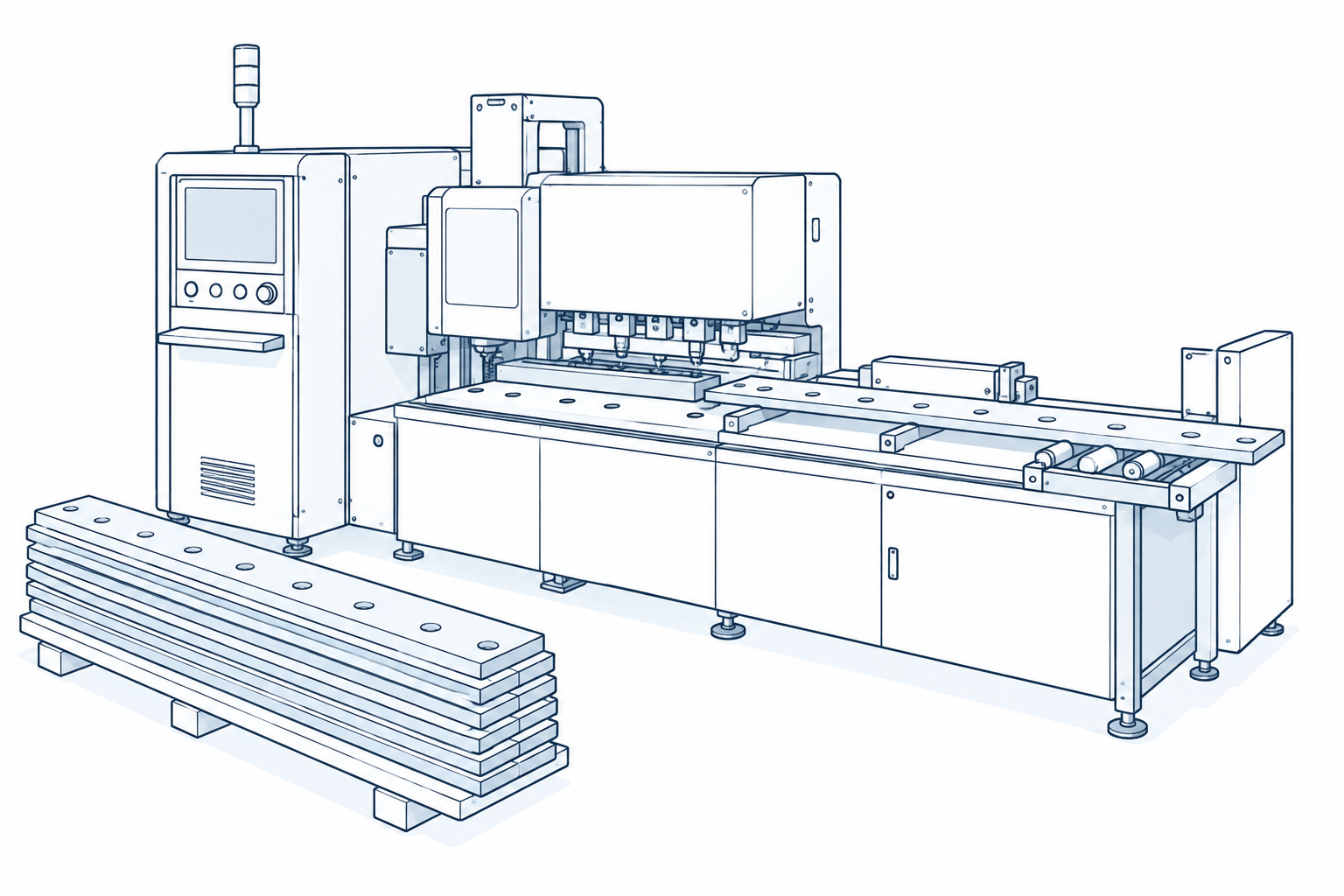

Punching & Shearing

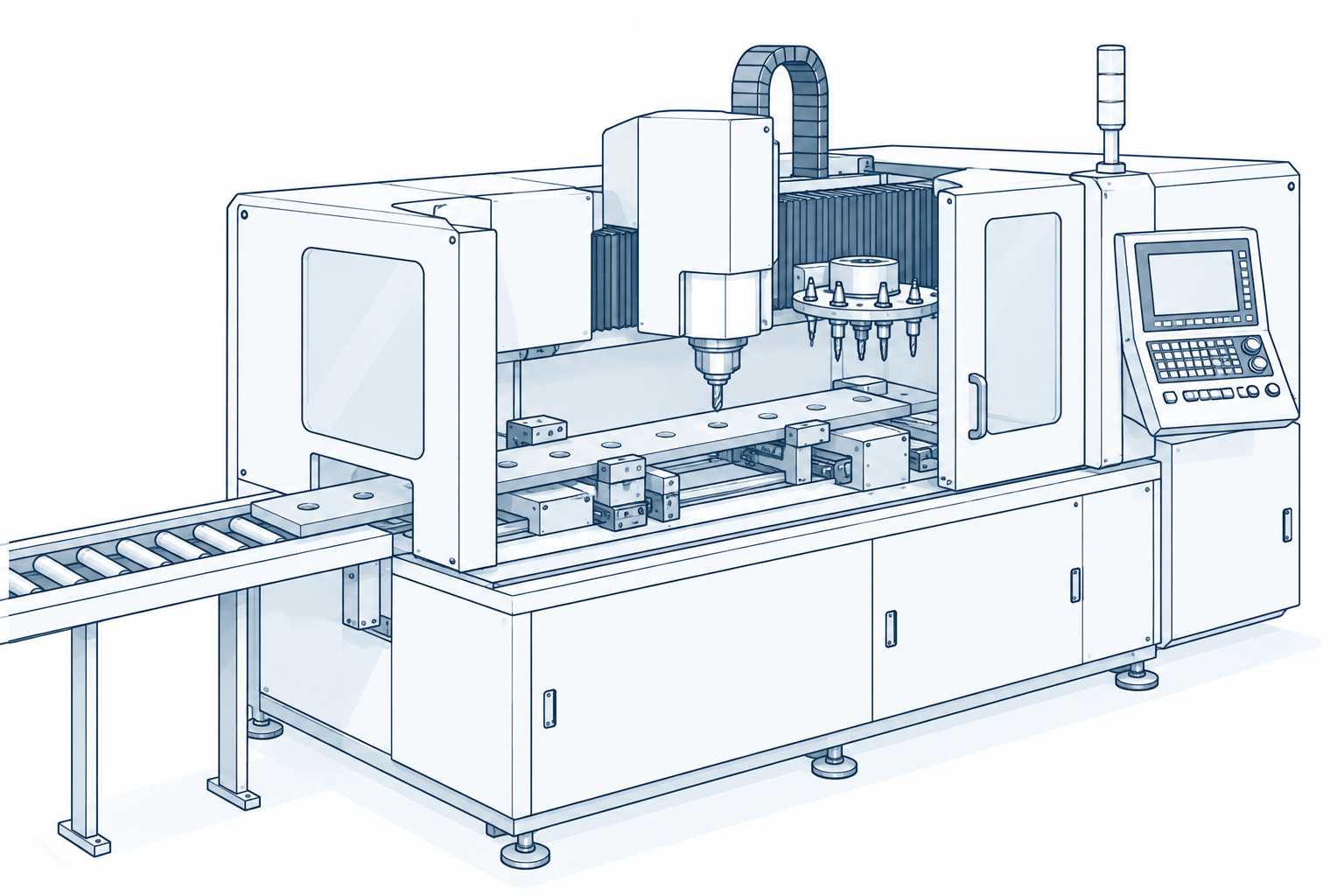

Chamfering / Edge Finishing

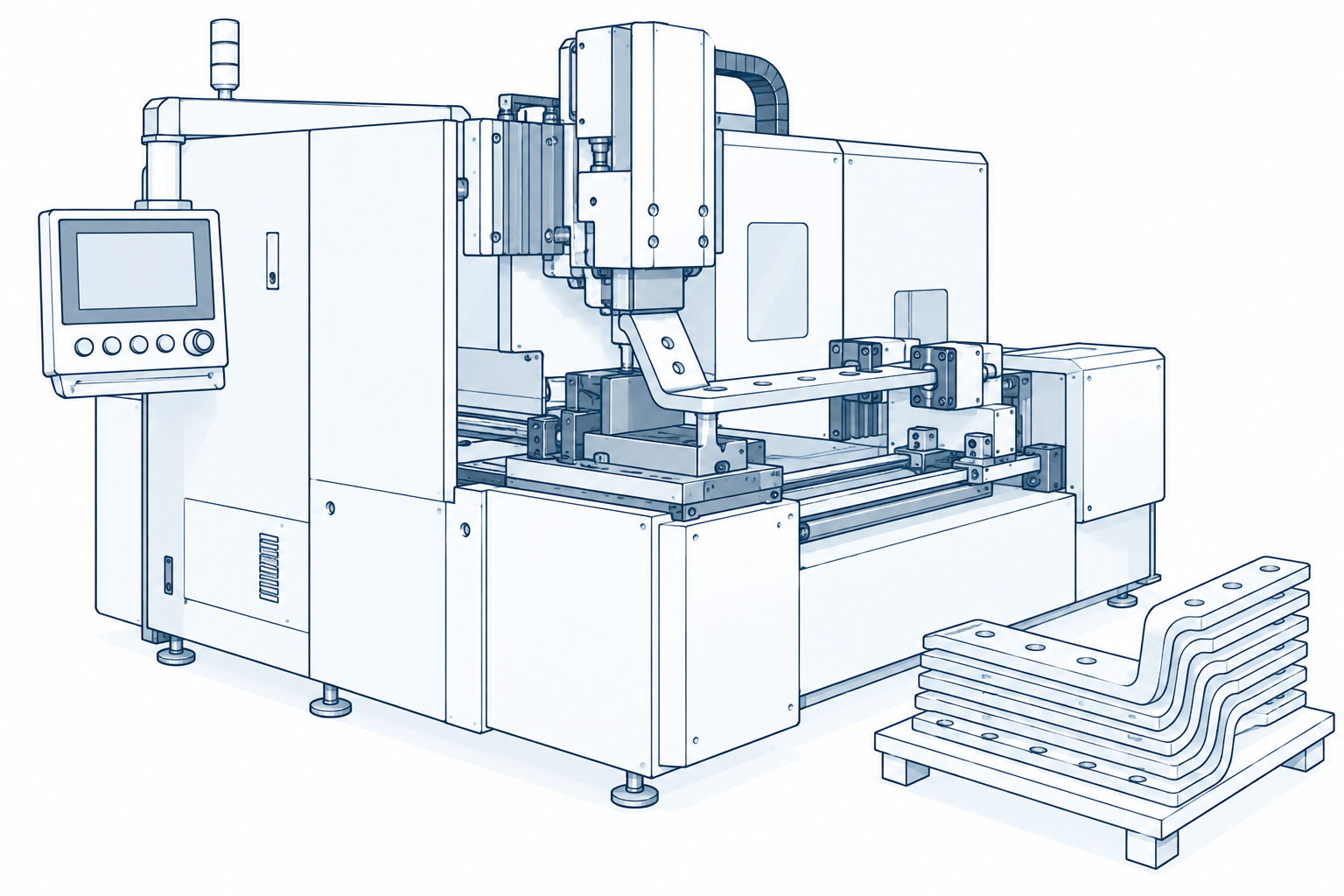

CNC Bending

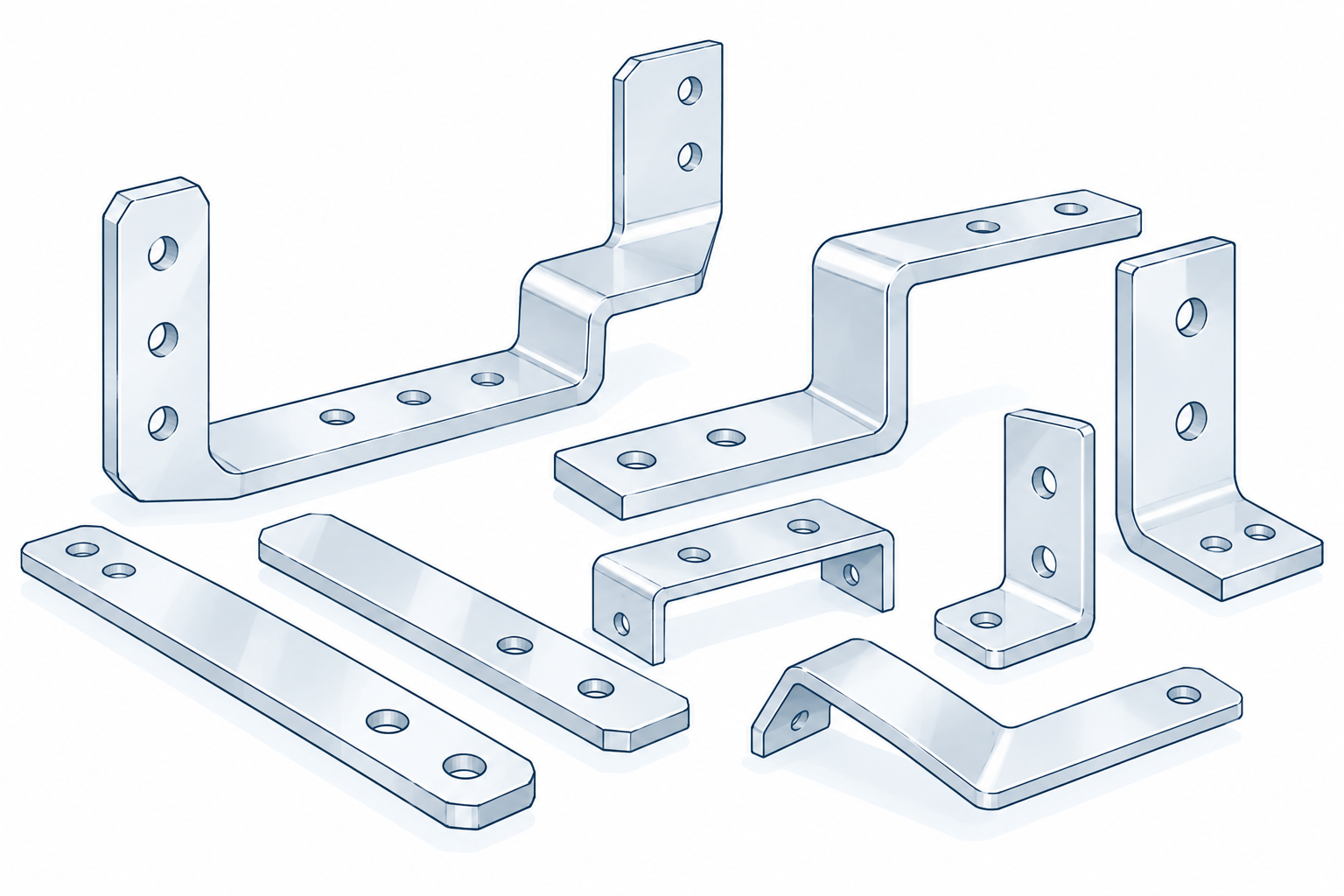

Finished Busbar
Built for Electrical Manufacturing
The LJMN-200 is designed for manufacturers requiring consistent edge finishing and profile machining of copper and aluminum busbars.
Transformer Manufacturing
Power & Energy Equipment
switchgear Manufacturing
Electrical Panel Manufacturing
READY TO IMPROVE YOUR BUSBAR PRODUCTION?
Get a Customized Busbar Chamfering Solution
Tell us your busbar material, size, required edge profile and production requirements. Our engineers will recommend the appropriate machine and tooling configuration for your project.
