CNC Servo Busbar Bending Machine
High-Precision Servo Bending for Copper and Aluminum Busbars
Why Choose CNC Servo Busbar Bending Machine?
The NC.40ZB Series CNC Servo Busbar Bending Machine is designed for precise and repeatable bending of copper and aluminum busbars. Powered by a Rexroth servo system and controlled by Beckhoff CNC technology, it provides stable positioning and accurate bending for switchgear, transformer and electrical equipment manufacturing.
- ±0.3° Bending Accuracy
- ±0.15 mm Positioning Accuracy
- 400 kN Nominal Pressure
- Up to 16 × 200 mm Flat Bending Capacity
See the CNC Bending Machine in Action

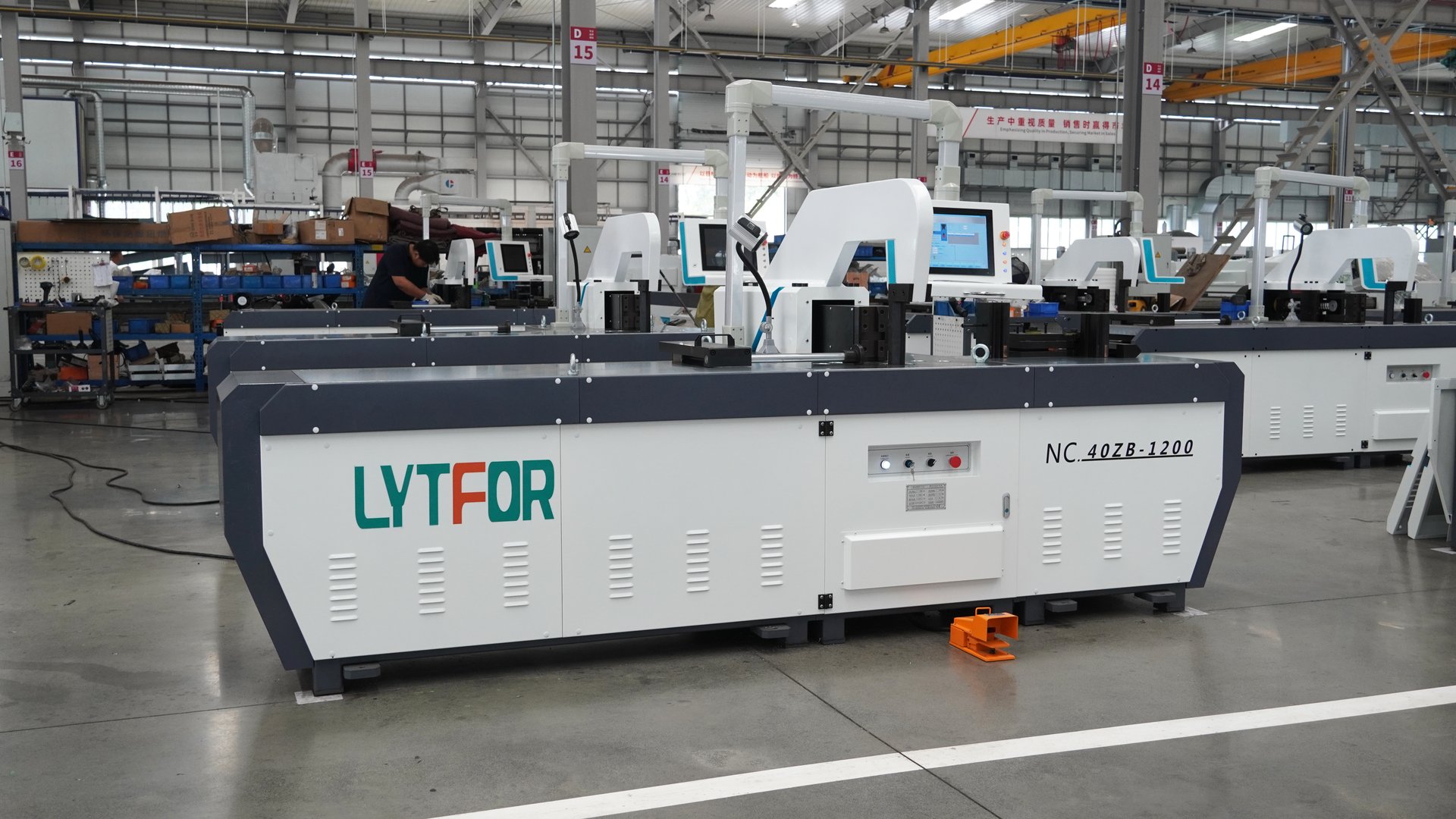

Compared with conventional hydraulic bending equipment, the NC.40ZB Series uses a servo-driven transmission system for more stable motion and precise positioning. Combined with CNC control and a center-force bending structure, it is designed for manufacturers requiring consistent bending quality across repeated production batches.
Need to test your own busbar drawing? Send us your drawing and specifications for a processing evaluation.
CNC Servo Busbar Bending Machine Key Features
Engineered for High-Precision Busbar Bending
Closed-Frame Bending Structure

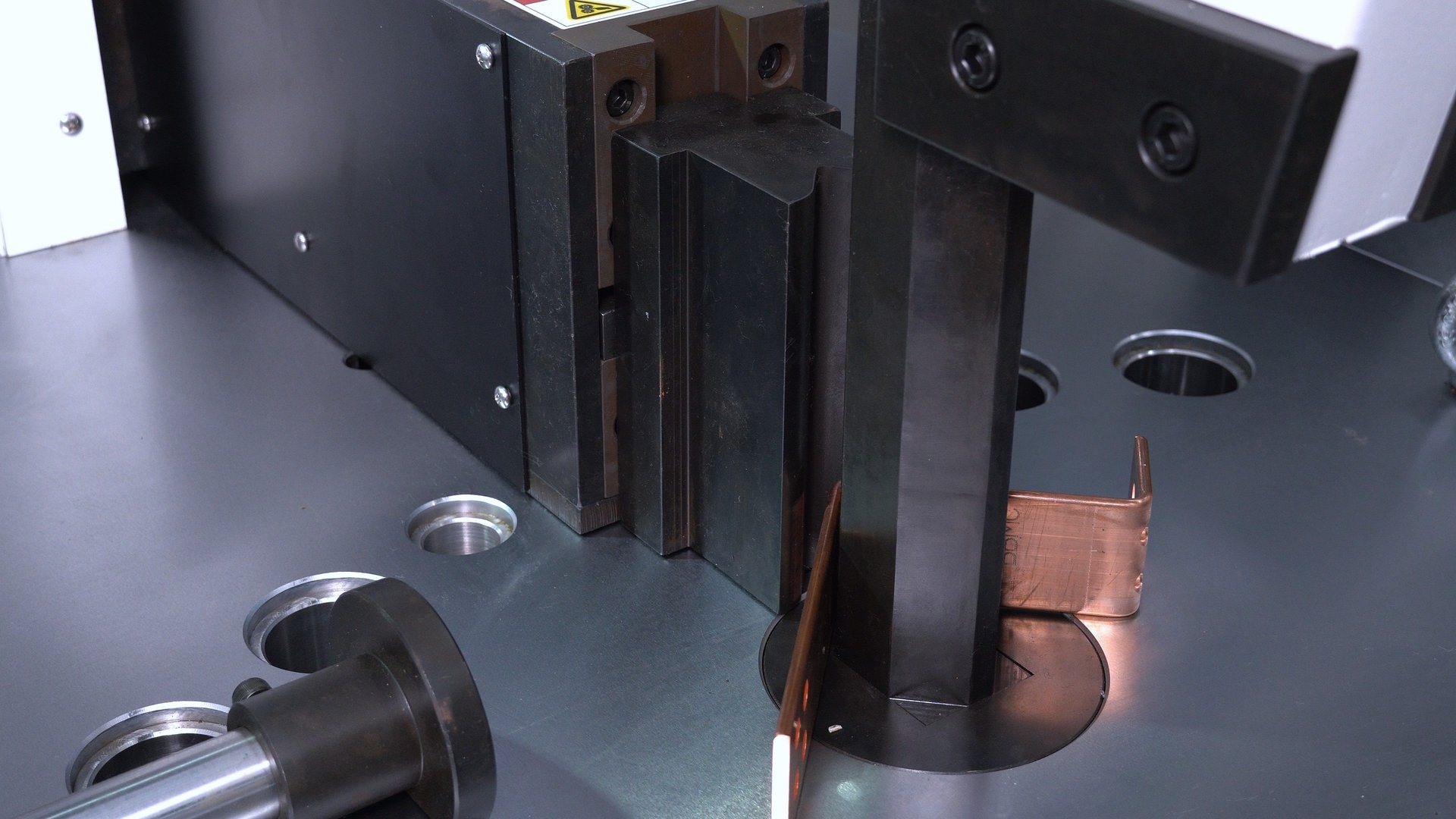

The closed-frame structure provides high rigidity and stable force distribution, helping maintain consistent bending accuracy under high loads.
Tooling for Different Bend Requirements

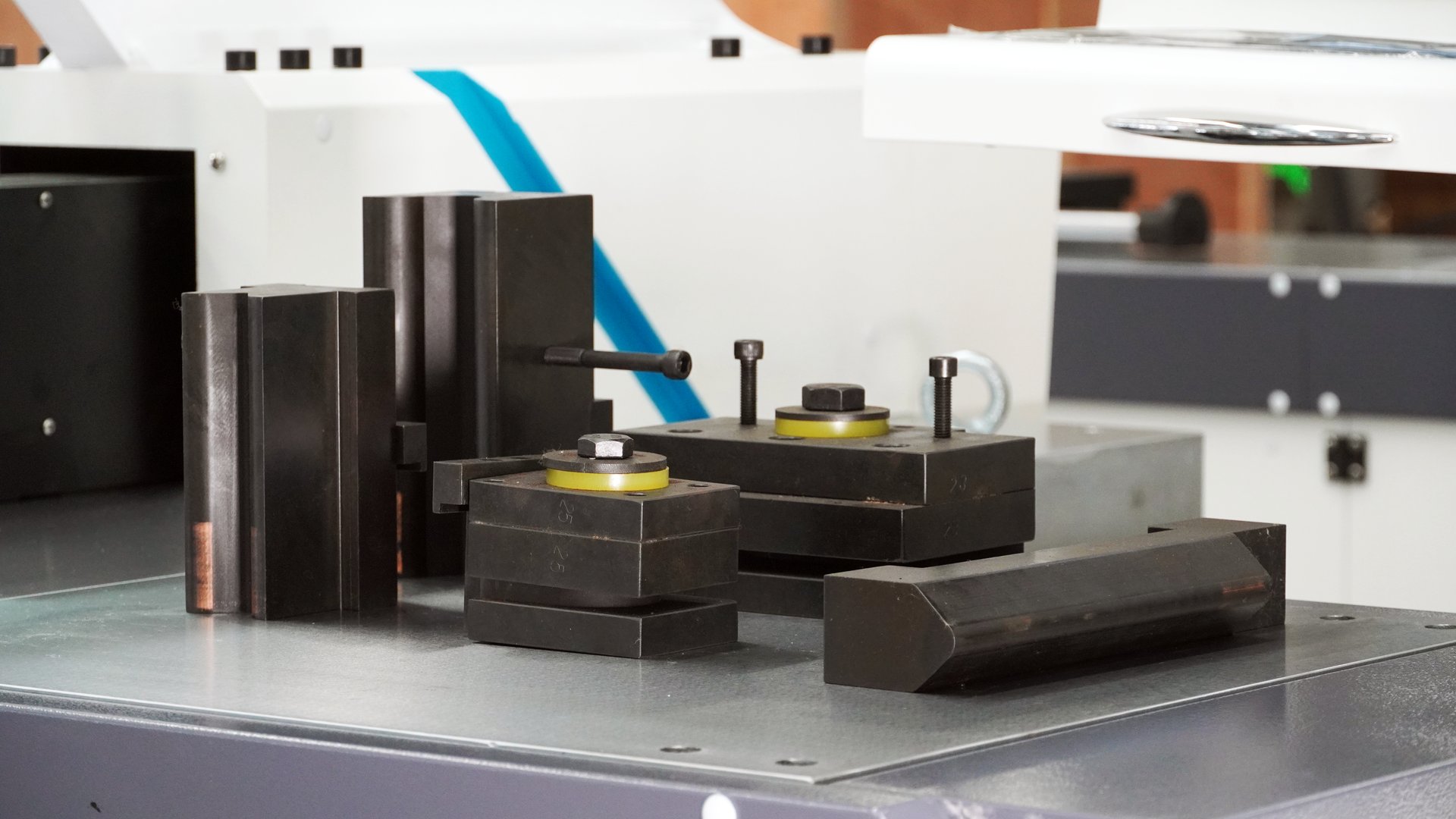

Flat and vertical bending tools accommodate different busbar shapes and radii. Optional twist tooling is available; tooling selection depends on the material and drawing.
Programmable CNC Positioning
The CNC stop supports controlled workpiece positioning, helping reduce repeated manual measurement between bends. The specified stop positioning accuracy is ±0.15 mm.
Beckhoff CNC Control System

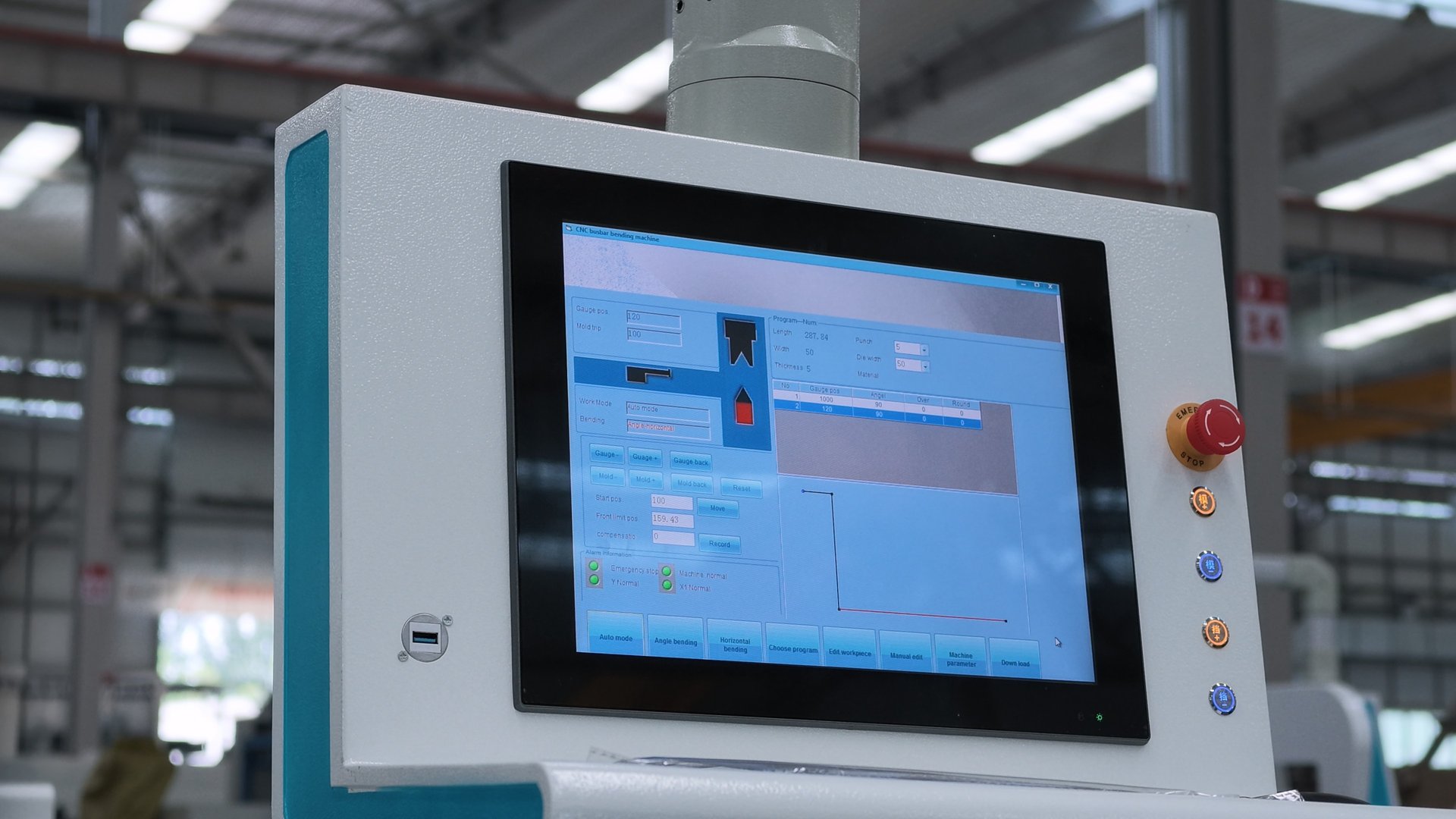

Beckhoff control and the machine’s CAD/CAM software support programmable bending operations. The operator interface brings workpiece data and bending sequences together on screen.
Technical Specifications
xplore the key technical specifications of the NC.40ZB Series CNC Servo Busbar Bending Machine, including bending capacity, accuracy, servo control and machine configuration.
| Parameter | NC.40ZB-1200 / 2000 |
|---|---|
| Nominal Pressure | 400 kN |
| Material Length | 1200 / 2000 mm |
| Max. Flat Bending Capacity | 16 × 160 / 16 × 200 mm |
| Max. Vertical Bending Capacity | 12 × 120 mm |
| Spindle Travel | 200 mm |
| Main Motor Power | 7.5 kW |
| Positioning Accuracy | ±0.15 mm |
| Bending Accuracy | ±0.3° |
| Machine Dimensions | 3500 × 1450 × 1850 / 4300 × 1450 × 1850 mm |
| Machine Weight | 3100 / 3300 kg |
*Machine configurations and bending molds can be customized according to busbar dimensions, bending radius and production requirements.
Bending Capabilities
Flexible Bending for Different Busbar Designs
Flat Bending
For standard horizontal busbar bends with different angles and bending radii.
Vertical Bending
Supports vertical bending of copper and aluminum busbars up to 12 × 120 mm.
Twist Bending — Optional
Optional twist bending tooling is available for complex busbar geometries.
Built for Electrical Manufacturing
The NC.40ZB Series is designed for manufacturers requiring accurate and repeatable copper and aluminum busbar bending in medium- to high-volume production.
FREQUENTLY ASKED QUESTIONS
What materials can the CNC busbar bending machine process?
The machine is designed for bending copper and aluminum busbars. The suitable bending capacity depends on the material dimensions, bending direction, radius and selected tooling.
What is the maximum busbar size?
The NC.40ZB Series supports flat bending up to 16 × 160 mm or 16 × 200 mm depending on the machine configuration. Maximum vertical bending capacity is 12 × 120 mm.
What bending accuracy can the machine achieve?
The NC.40ZB Series provides bending accuracy of approximately ±0.3° and positioning accuracy of ±0.15 mm, helping maintain consistent results during repeated production.
What types of bending can the machine perform?
The machine supports flat bending and vertical bending with different mold configurations. Optional twist bending tooling is also available for more complex busbar designs.
Can it work with a CNC busbar punching and shearing machine?
Yes. The CNC servo bending machine can be used together with a CNC punching and shearing machine as part of an automated busbar production workflow.
Do you provide customized molds, installation and training?
Yes. Machine configuration and bending tooling can be selected according to the required busbar dimensions and bending applications. Overseas installation, commissioning and operator training can be arranged according to project requirements.
